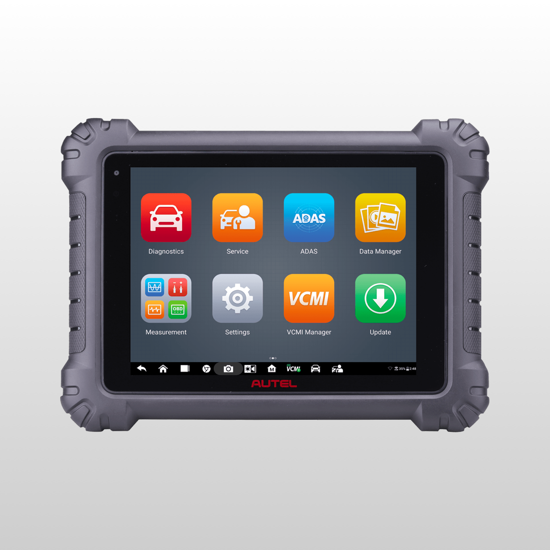

The MaxiSYS MS919 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet, fuelled by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), equipped with 128GB of memory.
Notably, it incorporates the MaxiFlash VCMI, a 5-in-1 communication and testing tool that facilitates wireless vehicle communications between the vehicle and the tablet, proficiently supporting the latest DoIP, D-PDU, and Mega CAN vehicle communication protocols. In addition, the VCMI boasts the ability to function as a 4-channel oscilloscope, a waveform generator, a multimeter, and a CanBUS tester.
The MS919 exhibits dynamic topology module mapping for supported vehicles.
This functionality efficiently guides the technician from diagnosing trouble codes to the repair and testing stages, providing comprehensive repair information accompanied by illustrative aids.
The MS919 also offers a selection of Oscilloscope preset guides and tests, along with an extensive waveform library to enhance diagnostic capabilities.
Moreover, the MS919 is equipped with a rechargeable Lithium battery, ensuring up to 8 hours of continuous usage, which is highly beneficial for automotive professionals.
Key Features:
- 1 Year Updates (unless on Promotion with 2 years updates - please check with your Authorised UK dealer)
- Android 7.0
- 2,3GHz + 1,7Ghz Samsung Exnos 8895v Octa-Core
- 128GB internal memory
- 4GB RAM
- 9.7" 2048 x 1536 TFT-LCD Corelle Glass
- Ultra fast power on
- 15,000mAh Lithium-Polymer Battery
- Oil and Water screen resistant
- DoIP and CAN-FD Compliant
- Remote Expert Compliant
- Secure Gateway approved by Vehicle Manufacturers
Key Features:
- Operating System: Android 7.0
- Processor: Samsung Exynos - 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
- Memory: 4GB RAM & 128GB On-board Memory
- Display: 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
- Connectivity: Wi-Fix2 (802.11 a/b/g/n/ac 2×2 MIMO), BT v.2.1 + EDR, GPS, USB 2.0 (TWO USB HOST Type A, ONE USB mini device), HDMI 2.0, SD Card (Support up to 256GB)
- Camera Rear: 16 Megapixel, Autofocus with Flashlight
- Camera Front: 5.0 Megapixel
- Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
- Audio Input/Output: Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jack
- Power and Battery: 15000mAh 3.8V lithium-polymer battery. Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
- Input Voltage: 12V/3A Adapter
- Operating Temperature: 0 to 50°C (32 to 122°F)
- Storage Temperature: -20 to 60°C (-4 to 140°F)
- Dimensions (WxHxD): 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″)
- Weight: 1.66kg (3.66lb.)
- Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
